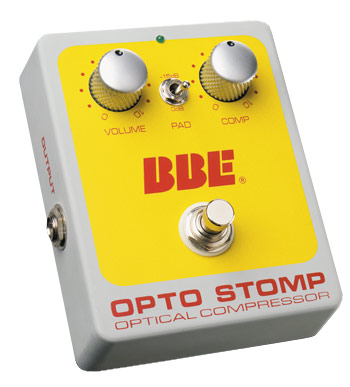

Opto Stomp
The Opto Stomp is a transparent optical compressor that provides a wide range of soft-knee compression effects, reminiscent of the best vintage compressors made in the ‘60s.
Applications
- Acoustic-Electric instruments
- Basses
- Guitars
Features include
- Vintage optical limiter
- Volume and comp controls
- -15dB pad switch
- ¼: inputs and outputs
- True hard-wire bypass
- 9V battery, AC adaptor included (North America only)
Specifications
- Frequency Response: 20Hz ~ 20kHz (+/- 1dB)
- Signal to Noise Ratio: 101dB
- THD: 0.01% @ 1kHz
- Noise: -94dBu
- Input Impedance:
- Instrument: 1 MEG Ohm
- Output Impedance:
- Instrument: 1 kOhms
* 0dBu = 0.775Vrms
- Instrument: 1 kOhms
- Power Requirements:
- Battery: 9VDC
- Battery Life: 50 hours
- Dimensions: 3.7"(W) x 4.7"(D) x 1.8"(H)
- Shipping Weight: 3.3 lbs.
Note: Due to continuing product improvement, specifications and design are subject to change without notice.
Support
- Five Year Warranty
- For BBE product and tech support: service@bbesound.com
- BBE Opto Stomp Manual
