BBE MP24M Digital Mixer

BBE MP24M Digital Mixer

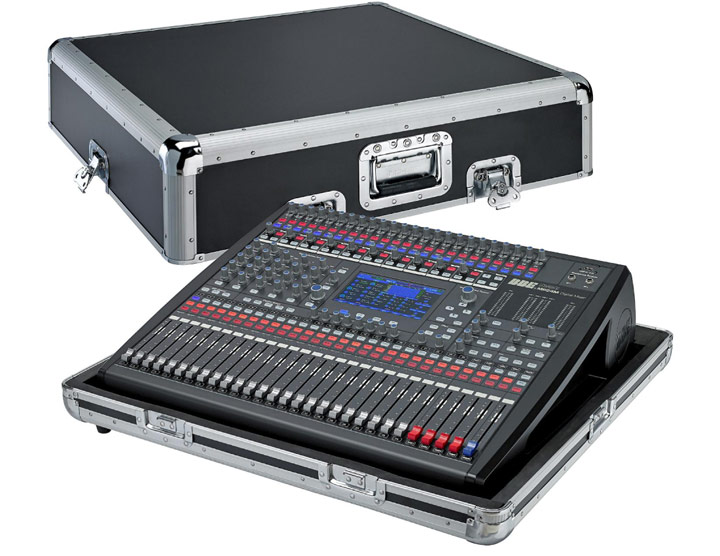

Introducing the BBE MP24M Digital Mixer, the only digital mixing system available with BBE® Sonic Maximizer® processing. You can also take full advantage of wireless, remote mixing on your iPad from anywhere in the room via WiFi with our MP24M app, available in the iPad app store (requires the DMX-WM WiFi module). The MP24M also includes it's own road case so that it's protected and ready to roll to the next gig when you are.

First, the BBE MP24M was designed to sound great, which is why we use class a mic preamps and SHARC 32bit floating point DSP processors

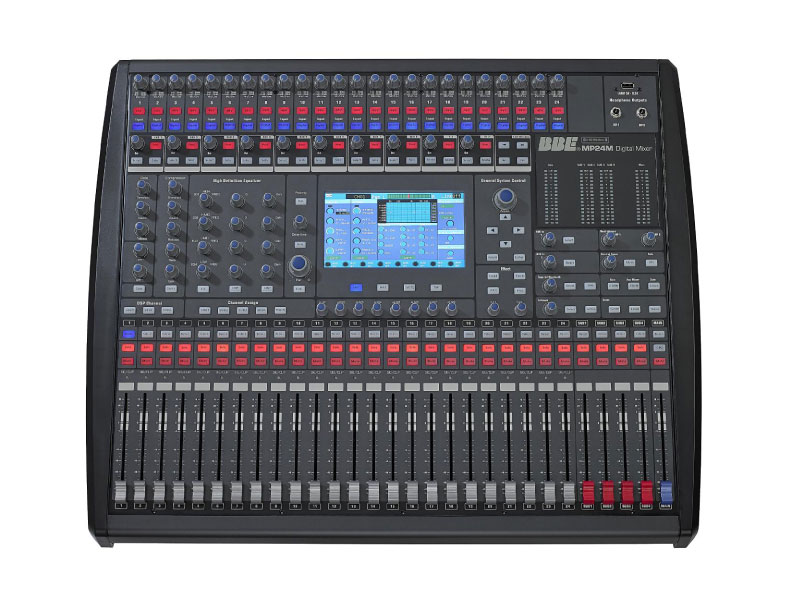

Second, it was designed to be easy to use and intuitive to navigate. There’s little or no need to dig down through pages of menus to make on-the-fly mix adjustments, nearly all the MP24M’s functions and parameters have a knob, switch or button on the top of the console. Adjusting EQ is as simple as selecting a channel and adjusting the EQ parameter, there’s a knob for each parameter…it sounds simple, but when you’re in the mix, speed is essential and simplicity becomes paramount.

The MP24M features 24 Class A microphone preamps, a virtual rack of fourteen 31-band graphic EQs, eight AUX sends and four Sub groups all with full DSP processing, and precise LED metering. The input channels feature compressor, gate, high and low pass filters, four-band parametric EQ, delay, and polarity reverse.

The MP24M also lets you save FX presets, Channel DSP presets and full console Scene presets via simple to use Load/Save/Copy functions.

BBE's MP24M Digital Mixer was designed to create an unparalleled audio mixing experience. It is simple and intuitive to operate even though it is a powerful mixing system.

Many digital consoles available in today’s market offer a stunning array of features and capabilities, the MP24M included, but what sets the MP24M apart is its ease of use. Anyone who’s trading in their analog mixer and taking the digital plunge will find the MP24M as intuitive and user-friendly as their faithful old analog workhorse, but quieter, cleaner, and with more sonic possibilities than they could ever imagine.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Features include

  • Features BBE’s Sonic Maximizer® processing
  • Wireless Mixing via iPad or PC (requires DMX-WM WiFi card installed)
  • 24 ultra-high headroom BBE MASS® Class A, Twin Servo mic preamps
  • 2 Stereo AUX line Inputs
  • 4 Subgroups
  • Dedicated Mono Output with Variable Level Control
  • 2 Digital Effects Engines Featuring BBE's Proprietary FX Library
  • 8 AUX Sends
  • 15 Total Analog Outputs (LIR Stereo Mains, Mono Main, 1-4 Subgroups, 1-8 AUX Sends)
  • Assignable AES/EBU Output
  • 7-inch full-color LCD display
  • 100 Scenes can be Stored for Recall Anytime
  • High-definition 24 bit/48 kHz A/D D/A converters
  • 32-bit floating-point SHARC DSP Processors
  • Dedicated Talkback mic input, fully assignable, w/EQ
  • High and Low Pass Filters
  • Full Function Gate and Compressor/Limiter
  • 4-band fully parametric EQ on every input and output
  • Phase Reverse
  • Channel Delay
  • 31 Band 1/3 Octave Graphic EQ Available on all analog outputs
  • Odd/Even Input Channels can be Linked
  • Odd/Even AUX Sends and Sub-Groups can be Linked
  • 2.4G Wireless Connectivity for Stereo Playback Devices
  • 1OOmm Long Throw Faders

Specifications

Microphone Inputs
Frequency Response to Direct Output 20Hz~100KHz at 0dBu ± 1.5dB
Frequency Response to Main Output 20Hz~20KHz at 0dBu ± 1.5dB
Distortion (THD&N) to Direct Output <0.005% at 0dBu ± 1KHz
Distortion (THD&N) to Main Output <0.01% at 0dBu ± 1KHz
SNR (Signal to Noise Ration) 107dB
Maximum Input Level +21dBu
Phantom Power (+/-3V) +48VDC
Line Inputs
Frequency Response to Direct Output 20Hz~100KHz at 0dBu ± 1.5dB
Frequency Response to Main Output 20Hz~20KHz at 0dBu ± 1.5dB
Distortion (THD&N) to Direct Output <0.005% at 0dBu ± 1KHz
Distortion (THD&N) to Main Output <0.01% at 0dBu ± 1KHz
Gain -15dBu~+35dBu
Maximum Input Level (Gain at 0dBu) +20dBu
Aux 1~2 Inputs
Frequency Response to Main Output 20Hz~20KHz at +0dBu ± 1.5dB
Distortion (THD&N) to Main Output <0.01% at 0dBu ± 1KHz
Gain -∞ to + 10dBu
Maximum Input Level +22dBu
Tape L/R Inputs
Frequency Response to Main Output 20Hz~20KHz at +4dBu ± 1.5dB
Distortion (THD&N) to Main Output <0.01% at 0dBu ± 1KHz
Gain -∞ to + 10dBu
Maximum Input Level +21dBu
Talkback MIC
Frequency Response to Main Output 20Hz~20KHz at +0dBu ± 1.5dB
Distortion (THD&N) to Main Output <0.01% at 0dBu ± 1KHz
Gain -∞ to + 10dBu
Phantom Power (+/-3V) +48VDC
Main Outputs
Maximum Output Level +20dBu
Mono Output
Maximum Output Level +22dBu
Aux 1~8 Outputs
Maximum Output Level +18dBu
Sub 1~4 Outputs
Maximum Output Level +18dBu
Tape Outputs
Maximum Output Level +14dBu
Control Room Outputs
Maximum Output Level +18dBu
System Crosstalk
Input to Output (at +4dBu 1KHz) -83dBu
Adjacent Channels (at +4dBu 1KHz) -82dBu
Noise (Bus noise) -85dBu
Noise Gate
Threshold Range -84dBu - 0dB
Attack Time 0.5mS~200mS
Release Time 5mS~1S
Compressor
Threshold Range -30dBu ± 20dB
Attack Time 0.5mS~200mS
Release Time 10mS~1S
Ratio 1:1~1:10
Gain -0dBu ± 24dB
EQ
Low (Low Pass or Low Shelf) 21Hz~19.2KHz +/- 24dB
Low Mid 21Hz~19.2KHz +/- 24dB
High Mid 21Hz~19.2KHz +/- 24dB
High (High Pass or High Shelf) 21Hz~19.2KHz +/- 24dB
Digital Audio
ADC Dynamic Range 114dB
DAC Dynamic Range 114dB
Internal Processor SHARC 32-bit, floating point
ADC,DAC bit depth/ sampling rate 24 bit/48KHz
Impedances
Microphone Inputs 1.4K Ω
Channel Insert Return 2.5K Ω
All Other Inputs 10K Ω or greater
Tape Out 1K Ω
All Other Outputs 120 Ω
Operating Free-air Temperature Range 0-40 C
Storage Temperature Range -20~60 C
FCC INFORMATION
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
