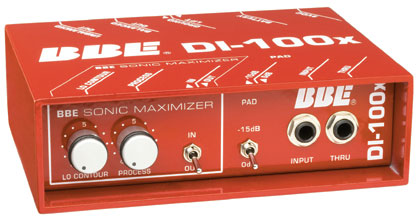

DI–100x

The DI-100x is a professional-grade active Direct Input ("DI") box built primarily for recording applications. Designed with paramount importance placed on maintaining the highest sonic integrity, its major advantage over other high-end DI boxes on the market is its built-in Sonic Maximizer processor which employs the BBE 4th-generation processing engine.

Applications

  • Recording studio
  • Live concerts

Features include

  • BBE Sonic Maximizer included
  • 15dB pad switch

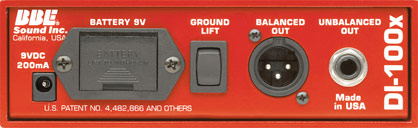

  • Ground lift switch
  • Recessed switches to reduce damage
  • No-slip full-bottom pad to stop slippage and prevent ground contamination through chassis-to-chassis contact
  • 5-year warranty

Specifications

  • Frequency response @ line out
    • Process mode: program controlled
    • Bypass mode: 10Hz to 50kHz (±1dB)
  • Signal to noise ratio (per channel)
    • BBE out: 118dB power supply (115dB 9v battery)
    • BBE in (@10): 115dB power supply (112dB 9v battery)
  • Total harmonic distortion (THD)
    • BBE out: less than 0.005% at -10dBu input (20 to 20kHz)
    • BBE in: 0.05% (20 to 20kHz)
  • Noise
    • BBE out: -105dBu
    • BBE in (@0): -94dBu
    • BBE in (@10): -85dBu
  • Input impedance
    • Instrument: 1M Ohms
    • L ine: 12k Ohms
  • Output impedance
    • XLR: 600 Ohms
    • L ine: 1k Ohms (* 0dBu=0.775Vrms)
  • Power requirements
    • D C inlet: +9 VDC min. 200ma
    • Battery: 9 VDC 15 hour life

Support

Reviews

"Both DIs [DI-1000 & DI-100x] sounded sweet, clear, airy and squeaky clean. The BBE's real strength is providing uncolored sound ... When I turned off the Maximizer, I just wanted it back on again - it's kind of addictive. [The BBE DIs offer] a quality DI with the added weapon of the Sonic Maximizer - an option you won't find on any other direct box..."
Guitar Player
