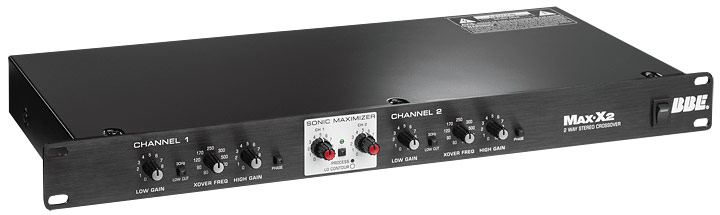

MAX-X2

The Max-X2 is a 2-way stereo crossover and Sonic Maximizer, which offers a variety of options for virtually any live sound reinforcement configuration. The Max-X2’s logical design makes it easy to operate, and its sonic integrity provides clean, distortion-free audio making the Max-X2 an affordable yet state-of-the-art crossover.

Applications

  • Live sound reinforcement
    • - churches
    • - Clubs
    • - Concert halls
    • - Contracting applications

Features include

  • 2-way stereo crossover
  • Full-function fourth generation Sonic Maximizer
  • 12dB/Octave filters
  • Servo-balanced XLR inputs
  • ¼" inputs/outputs
  • Phase inversion switching
  • Over 115dB of dynamic range.

Specifications

  • Crossover type
    • Stereo 2 way
  • Crossover frequency
    • Low-high: 250Hz to 6kHz
  • Filter type (slope)
    • 2nd order
    • 12dB/octave
  • Inputs
    • Type: XLR and ¼" unbalanced
    • Impedance: 100kOhms
  • Outputs
    • Type: ¼" unbalanced
    • Impedance: 600 Ohms
  • Low cut filters
    • 30Hz, 12dB/octave
  • Frequency response
    • 20Hz to 25,000Hz
  • Signal to noise ratio
    • More than 95dB
  • Total harmonic distortion (THD)
    • Less than 0.05%
